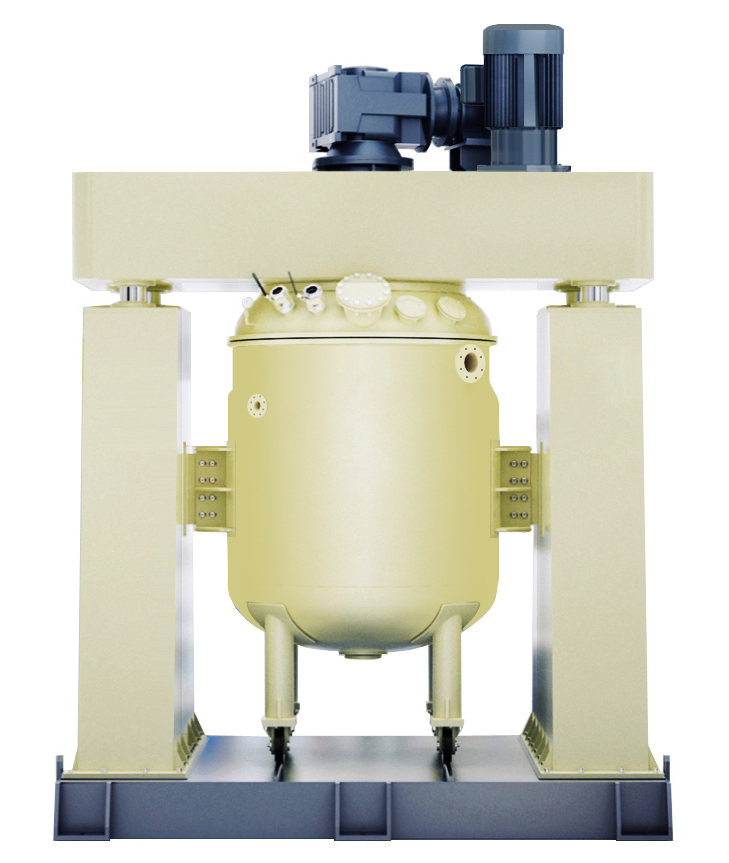

Powerful Disperser and Mixer







Technical Parameter

Model
Viscosity.
Volume
High Rev.
Vacuum
High Speed
Low Speed
TES -300L
≤150000cps
300L
1450rpm
-0.095MPa
30kw
15kw
TES -500L
≤150000cps
500L
1450rpm
-0.095MPa
45kw
22kw
TES -1000L
≤150000cps
1000L
1450rpm
-0.095MPa
55kw
30kw
TES -2000L
≤150000cps
2000L
1450rpm
-0.095MPa
90kw
37kw


Application
New Energy Industry:
Battery paste, Solder paste
Food Industry:
Chili sauce, Sesame sauce, Fruit tea, Ice cream, Cream, Jam, Bean paste, Peanut milk, Protein milk, Dairy products,
Essence, Condiments, Food and Beverage
Chemical Industry:
Ceramic paste, Silicone ink, Sealant, Structural adhesive, Soft ointment, Jam
Pharmaceutical Industry:
Syrup, Nutrient solution, Ointment, Biologics, Vaccines, Oral liquid, Fungicides, Injections, Antibiotics, Droplets

Performance Advantages
The powerful disperser is an efficient dispersing and mixing equipment: equipped with two high-speed dispersers
and one low-speed scrapping mixer, which can be variable frequency speed controlled to achieve high-speed
dispersion of materials and efficient dispersion mixing. It can be configured with vacuum and has good exhaust
and defoaming effects.
Accurate temperature control and high equipment safety. Durable and reliable sealing.
There are multiple product models with series design, which can meet the mixing of high viscosity materials ranging
from 300 - 6000L.
