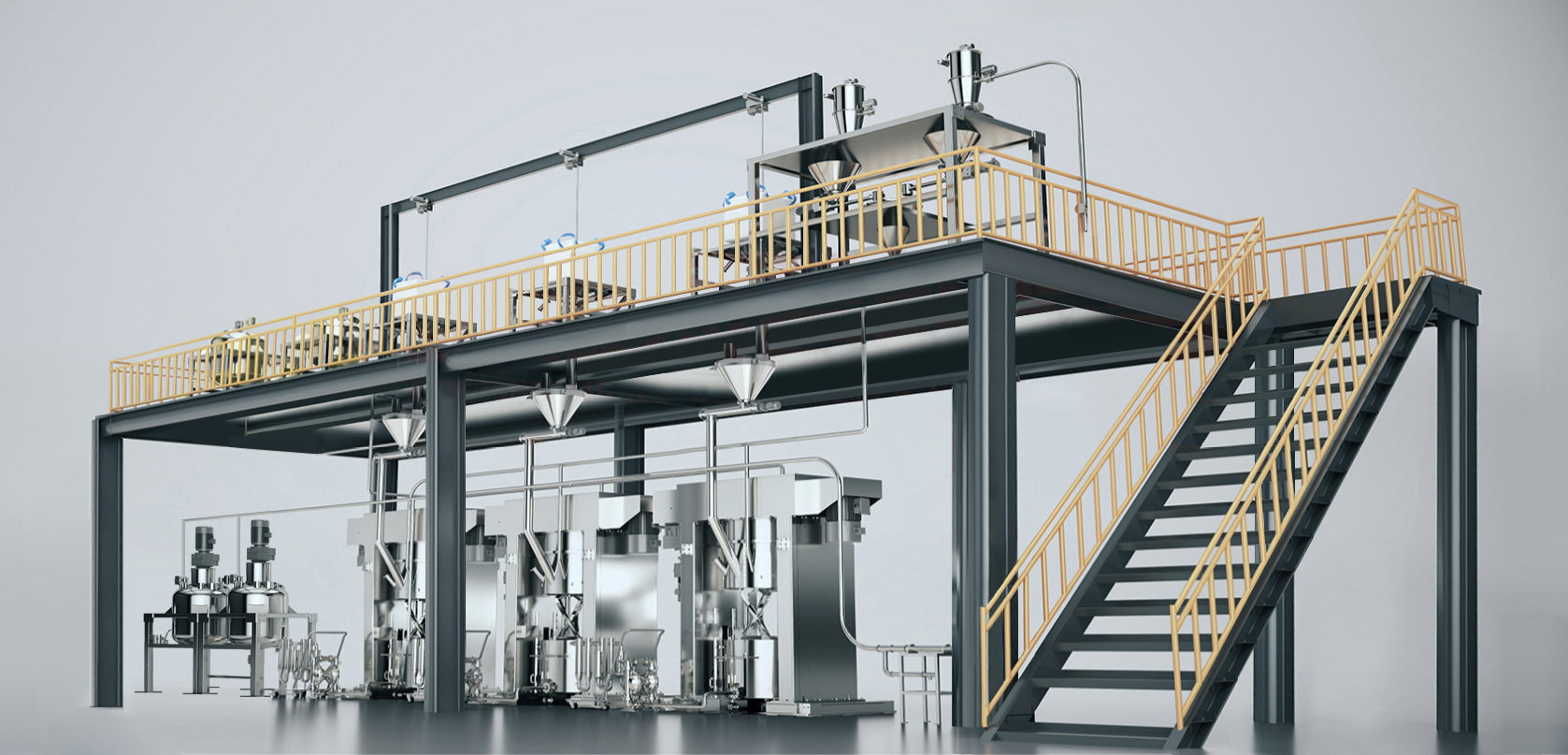

High Efficiency Slurry Mixing Line


Performance Advantages
1. Powder/liquid pre mixing and fine dispersion are integrated into one machine, which can quickly prepare high-quality slurry mixing.
Different raw materials are put into the mixing bin according to different ratios, the powder is pre mixed. The pre mixed powder is added to the high-efficiency pulping
machine, and then mixed with different solvents according to different ratios. The mixed slurry enters the mixing tank.
2. The high efficiency slurry system includes a powder feeding module, a powder mixing module, a dispersion pulping module and a liquid dual circulation module.
3. Adopting advanced measurement and testing technology, improve the measurement accuracy of liquid materials and the conveying accuracy of powder materials,
stability and reliability.
4. A high viscosity slurry is placed inside the slurry using vacuum pumping and anchor stirring to create flow and remove bubbles.



Technical Parameter

Model
STL2T
STL4T
STL6T
Capacity(L/H)
2000L/H
4000L/H
6000L/H
Planetary Mixer
1
2
4
Buffer Tank
2000L
2000L x 2
3000L x 2
